Precision-engineered aluminum pivot entry doors designed for structural resilience, energy efficiency, and modern luxury exterior applications.
Modern architectural trends prioritize grand structural scale, seamless spatial transitions, and high thermal efficiency. Custom aluminum pivot doors represent the pinnacle of exterior opening engineering.
Unlike traditional hinged doors that exert cantilever tension on vertical frames, pivot door systems transfer structural load directly to the floor substrate via heavy-duty floor spring pins or concealed hydraulic pivot boxes. This mechanical advantage allows architects to specify oversized door leafs up to 3000mm in height and 2000mm in width without frame deflection or long-term sag.
To combat thermal bridging in modern facades, leading aluminum pivot door manufacturers utilize reinforced Polyamide (PA66GF25) thermal barrier strips. Interlocking outer and inner extrusions prevent heat transfer, achieving low U-factors down to 0.28 BTU/h·ft²·°F while complying with rigorous international energy building codes (NFRC, Title 24, Passive House).
Coastal and extreme-weather regional projects require stringent wind-load and impact resistance. Certified aluminum pivot doors feature multi-layer laminated impact glass, structural silicone glazing (SSG), and drop-down acoustic/perimeter EPDM seals. Systems engineered for Florida Building Code (NOA) withstand design pressures exceeding ±70 PSF under cyclic wind pressure loading.
Standardized comparative evaluation criteria for high-end residential and commercial custom pivot door procurement.
| Performance Parameter | Standard Commercial Specification | Veridor High-Performance Architectural Grade | International Standard Compliance |
|---|---|---|---|
| Profile Alloy & Temper | Standard 6063-T5 Extrusion | High-Tensile 6063-T6 / 6005-T6 Architectural Grade | ASTM B221 / GB/T 5237 |
| Thermal Insulation | Non-Thermal or 14mm PVC Strip | 24mm - 34mm Polyamide PA66GF25 Thermal Barrier | NFRC 100/200, ISO 10077 |
| Air Infiltration Resistance | Q1 ≤ 1.5 m³/(m·h) | Class A4 Ultra-Sealed (EPDM Triple Weatherstrip + Automatic Drop Seal) | ASTM E283 / EN 12207 |
| Water Penetration Resistance | 300 Pa Static Test | 700 Pa High Dynamic Pressure Threshold with Concealed Sump Drain | ASTM E331 / AS2047 |
| Surface Finish & Corrosion | Standard Electrostatic Powder Coat (50µm) | AkzoNobel Interpon D2015 / PVDF Fluorocarbon (25-Year Marine Class) | AAMA 2604 / AAMA 2605 / Qualicoat Class 2 |
| Glass Configuration | 5mm + 12A + 5mm Double Toughened | SGP Laminated Hurricane Impact / Low-E Triple Glazed Warm Edge Argon | ANSI Z97.1 / ASTM E1300 / SGCC |
| Hardware & Lock Integration | Single-Point Mechanical Latch | Concealed German Hydraulic Pivot Box + Multi-Point Smart Biometric Lock | DIN EN 1154 / CE Certified |
Established in 2013, Veridor Door Technologies Co., Ltd. operates a streamlined 19,000 m² production hub dedicated to contemporary residential entry doors. With 11 years of industry experience and 5 years of active foreign trade experience, the firm generates $11 million in annual export revenue.
Veridor targets fast-growing markets in Oceania, Southeast Asia, and North America, directly supplying door importers, housing project contractors, and online distributors. Veridor collaborates with over 480 vetted hardware and material suppliers to ensure product precision. A team of 22 quality inspectors executes IP65 weather-seal checks, surface coating adhesion testing, and manual assembly inspections.
Guided by modern design trends, 28 R&D engineers developed 65 new entry door models last year. Customization capabilities include custom panel relief patterns, smart digital lock pre-installations, custom frame widths, and anti-scratch marine-grade surface treatments tailored to regional architectural requirements.
End-to-end automated manufacturing workflow delivering zero-defect aluminum pivot door systems.
Streamlining global procurement for architectural hardware distributors, facade engineering firms, and commercial developers.
Leveraging China's integrated aluminum profile manufacturing clusters allows Veridor to provide precision CNC maching, custom extrusion dies, and advanced anodizing at scaled cost efficiencies. Bulk raw material procurement ensures price stability against global aluminum fluctuations.
Veridor partners with leading international hardware manufacturers including FritsJurgens, Dormakaba, and Siegenia, while offering pre-engineered domestic heavy-duty pivot options. Pre-drilled laser-milled slots ensure turnkey on-site assembly.
Our 28 R&D engineers provide comprehensive technical support, including 2D installation drawings, 3D Revit/BIM models, dynamic load calculations, and structural wind pressure simulation reports for custom project approvals.
Tailored structural designs meeting stringent regional building codes and environmental extreme demands.
Custom aluminum pivot doors engineered with Florida NOA (Notice of Acceptance) compliance. Systems incorporate laminated impact glass (PVB/SGP interlayers) and multi-point lock mechanisms designed to resist Category 5 hurricane pressures and impact debris.
Designs compliant with AS2047 standard requirements, using marine-grade anodized aluminum (25-micron thickness) to prevent salt spray corrosion, severe oxidation, and color fading in coastal Australian and New Zealand environments.
High-ventilation center-pivot glass systems optimized for high humidity and tropical rainstorm conditions. Integrated sub-floor concealed drainage tracks prevent water accumulation while facilitating smooth air exchange.
Expert insights into engineering specs, custom manufacturing, logistics, and installation compliance.
Aluminum pivot doors utilize top and bottom pivot hinges instead of traditional side-mounted butt hinges. This structural configuration transfers the door panel weight directly down into the floor structure rather than hanging it from the vertical side frame. Consequently, pivot doors can support significantly heavier glass panels (up to 500kg+) and much wider dimensions (over 2 meters wide) without placing dynamic shear stress on the surrounding wall frame.
Achieving proper weather-sealing on pivot doors requires advanced dual-compression EPDM gaskets, automatic drop-down mechanical bottom seals, and engineered sills with internal drainage channels. When the door closes, automatic drop seals trigger to seal the bottom gap against rain and draft, achieving full air tightness (EN 12207 Class A4) and water tightness up to 700 Pa static pressure.
Veridor products can be manufactured to satisfy Florida HVHZ NOA requirements, NFRC thermal performance rating (U-factor and SHGC), Australian AS2047 structural requirements, and CE mark standards. All glass units can be configured with Low-E double or triple insulated glass units (IGU) or SGP structural laminated hurricane glass.
Yes. Veridor offers factory pre-milling and internal wire conduit installation for smart access control hardware. Systems can be integrated with motor-driven multi-point locks featuring biometric fingerprint recognition, RFID keycards, facial recognition modules, or smartphone connectivity.
For extreme coastal environments, we recommend AkzoNobel Interpon D2015 fluorocarbon (PVDF) powder coating or 25-micron anodized surface treatment. These finishes comply with AAMA 2605 specifications and offer 25+ years of resistance against salt corrosion, UV degradation, chalking, and color fading.

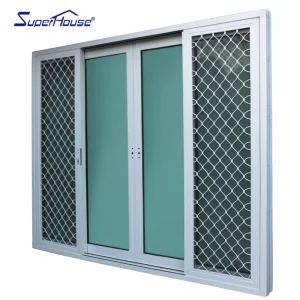

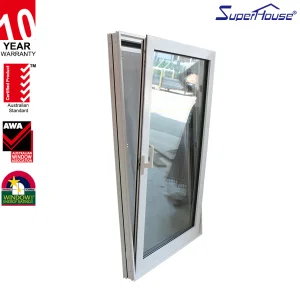

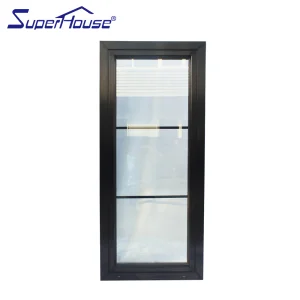

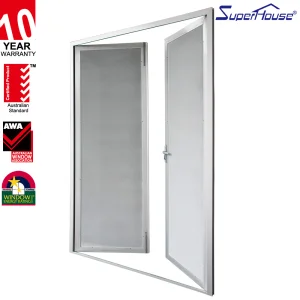

Explore our full line of hurricane impact pivot doors, sliding patio doors, French doors, thermal break window walls, and tilt-turn systems.
